Partner Data API Deployment Pipeline

Interactive workflow map for the GitHub Actions deployment pipeline that builds and deploys the apps/partner-data-api Cloudflare Worker.

Artifacts

Section titled “Artifacts”
File Purpose
ordermatic-partner-data-api-deployment.workflow.html Interactive, pan/zoom viewer with guided views
ordermatic-partner-data-api-deployment.workflow.json Archify source of truth (validated, versioned)
ordermatic-partner-data-api-deployment.workflow.png Static preview for docs / READMEs

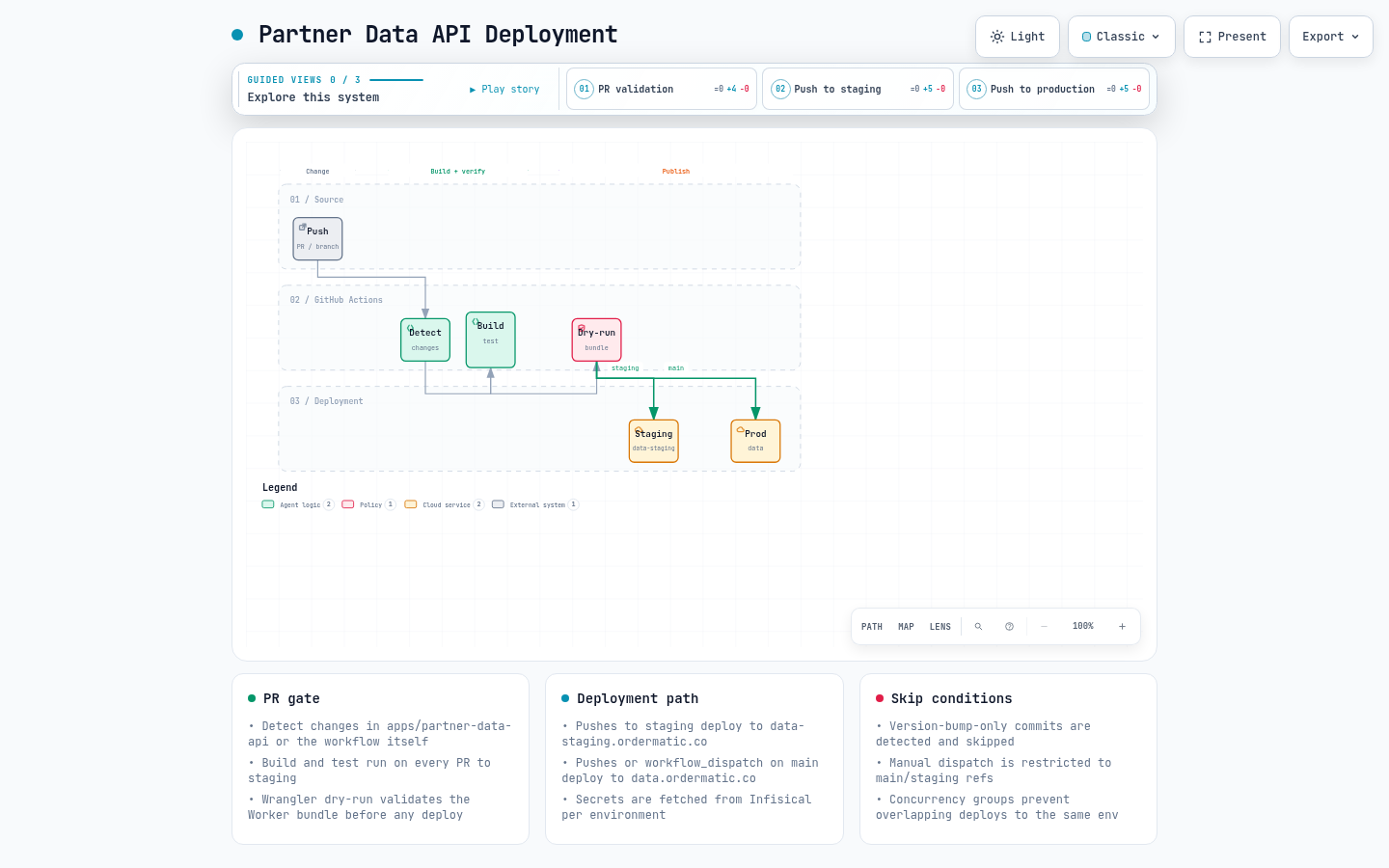

Static preview

Stages

Section titled “Stages”
  • Push — a commit or PR touches apps/partner-data-api or the workflow itself.
  • Detect — the workflow filters out version-bump-only commits and restricted refs.
  • Build + test — the Worker is built and the test suite runs on every PR to staging.
  • Dry-run — Wrangler builds and validates the bundle without publishing.
  • Deploy — merges to staging deploy to data-staging.ordermatic.co; merges or workflow_dispatch on main deploy to data.ordermatic.co.

Secrets are fetched from Infisical per environment, and concurrency groups prevent overlapping deploys. One runtime secret lives outside the pipeline: wrangler secret put DATABASE_URL --env <env>, which the Worker needs to validate partner API tokens. Bearer requests fail closed (503) without it.

Guided views

Section titled “Guided views”
  1. PR validation — build, test, and Wrangler dry-run without deploying.
  2. Push to staging — the full path through the staging deployment.
  3. Push to production — the full path through the production deployment.

Workflow

Section titled “Workflow”

The Archify source is the canonical map. To update it:

Terminal window
node /path/to/archify/bin/archify.mjs validate workflow \
  apps/docs/public/diagrams/ordermatic-partner-data-api-deployment.workflow.json \
  --quality showcase


node /path/to/archify/bin/archify.mjs deliver workflow \
  apps/docs/public/diagrams/ordermatic-partner-data-api-deployment.workflow.json \
  apps/docs/public/diagrams/ordermatic-partner-data-api-deployment.workflow.html \
  --quality showcase


node /path/to/archify/bin/archify.mjs visual-check \
  apps/docs/public/diagrams/ordermatic-partner-data-api-deployment.workflow.html

Then commit both the .json source and regenerated .html / .png.
